SSC-K468M is a 4K GigE monochrome TDI line‑scan camera adopting global‑shutter CMOS sensor, delivering up to 68.0 kHz maximum line rate, high sensitivity and rich built‑in image processing functions for high‑speed precision inspection across multiple industries.

• Resolution: 4096 × 2
• Pixel size: 7 μm × 7 μm
• Global‑shutter CMOS sensor
• Maximum line rate: 68.0 kHz
• Minimum exposure time: 3.8 μs, exposure step: 0.1 μs
• Pixel formats: 8/10/10p/12/12p bit; high sensitivity and low noise

Main Function

ROI, Pixel Binning, Image Flip, Test Pattern, Compressed Transmission, Overlap Acquisition, Trigger Control, Encoder Module, Gain & Offset, Image Processing, LUT, Flat‑Field Correction, Parameter Set, Temperature Monitoring, PoE Power Supply

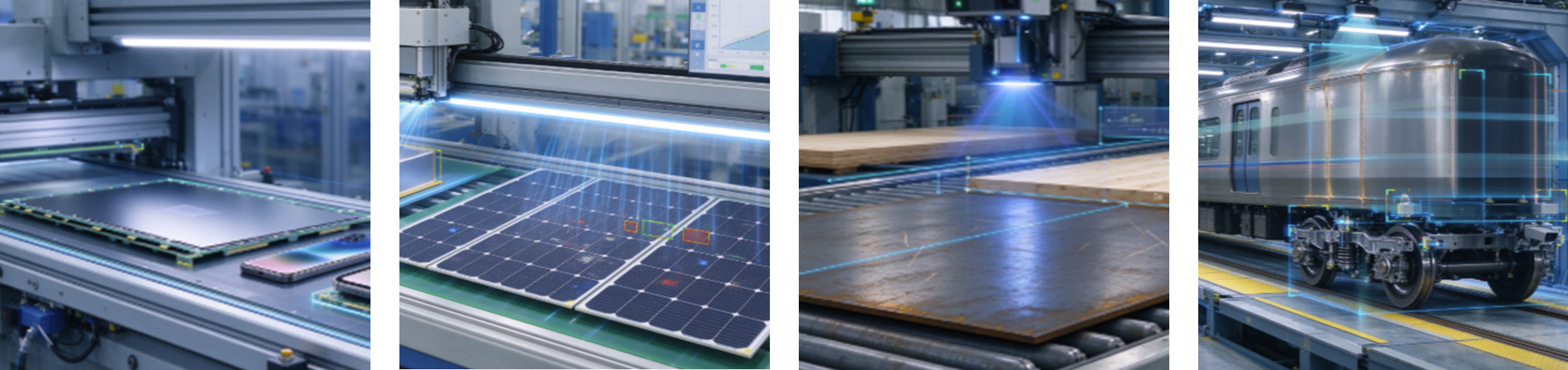

Applications

• 3C Component Inspection: FPD modules, mobile phones, tablets, computers, etc.
• New‑Energy Process Inspection: Process inspection for lithium batteries and solar panels.
• Sheet‑material Dimension & Appearance Inspection Dimension: measurement and appearance inspection for steel plates, wood boards and other sheet materials.
• Rail‑transit Safety Inspection: Visual inspection for rail transit safety scenarios.
